The emergence of machine vision has enabled businesses to adopt a more intelligent, more efficient and safer way of working in the age of artificial intelligence (AI). Employing a combination of both hardware and software, machine vision solutions deliver automated guidance and control using the processing of images at the edge, in real-time.

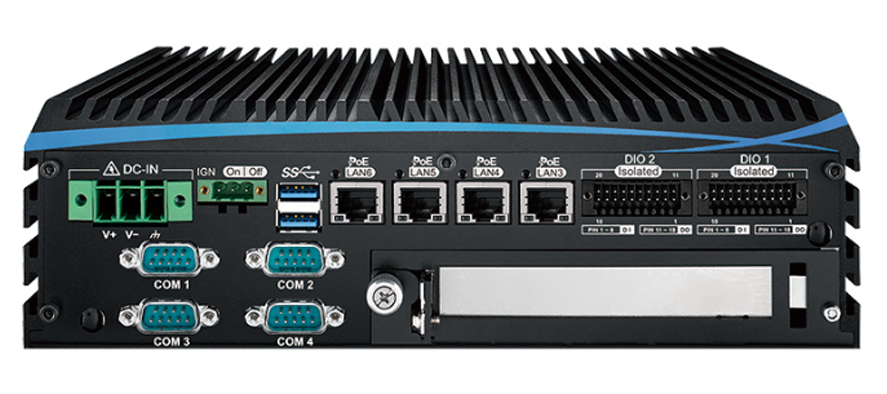

Designed to meet demanding machine vision requirements, these fanless computers have been specified to deliver maximum performance. The integration of PoE ports allow for connection to multiple additional cameras, while increased digital I/O enables the computers to control complex configurations of peripheral devices.
Highly expandable and robust, these embedded computers are supported by Intel’s latest generation Core i and Xeon processors. Multiple PCIe expansion allows for the integration of high-end graphics and application-specific plugin cards, providing vision integrators with flexibility in configuration. The addition of four removable SSD drives enables higher speed and capacity of data storage with RAID redundancy.

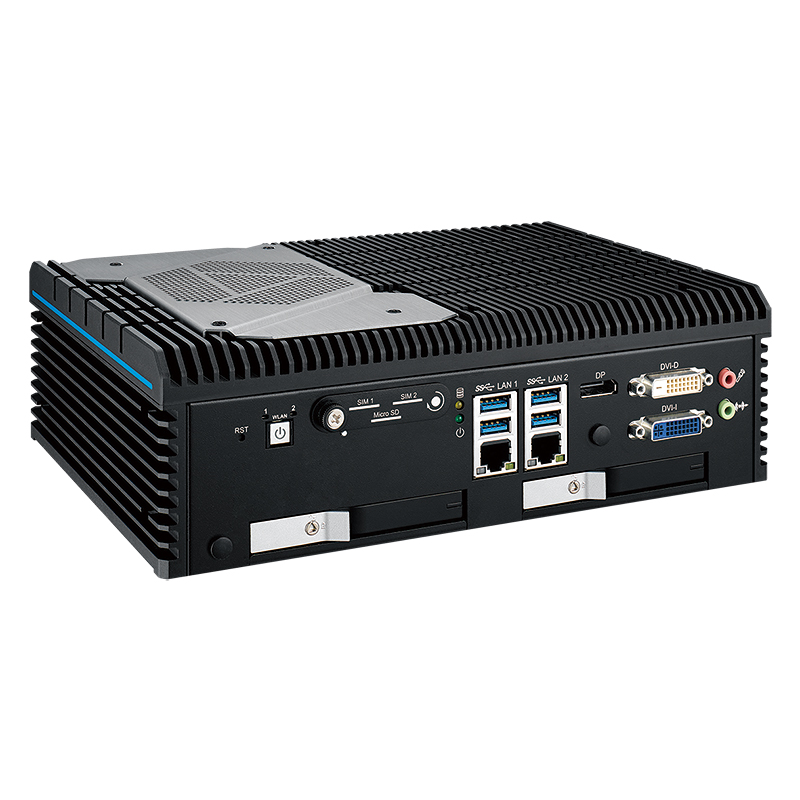

Powered by 10th generation 10-core Intel® Xeon®/Core™ i9/i7/i5/i3 processor (Comet Lake), running with Intel® W480E Chipset, fanless -40°C to 75°C operating temperature, multiple 2.5GigE/10GigE RJ45/SFP+ Fiber LAN, max 6 USB 3.2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, 9V to 50V power input with 80V surge protection, ignition power control, smart circuit protection and rugged reliability in harsh environments, all-in-one integrated features, the ECX-2000 Series Fanless Embedded System is your new generation choices for Factory Automation, Intelligent Vending, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, any Artificial Intelligent oriented AIoT or Industry 4.0 applications.

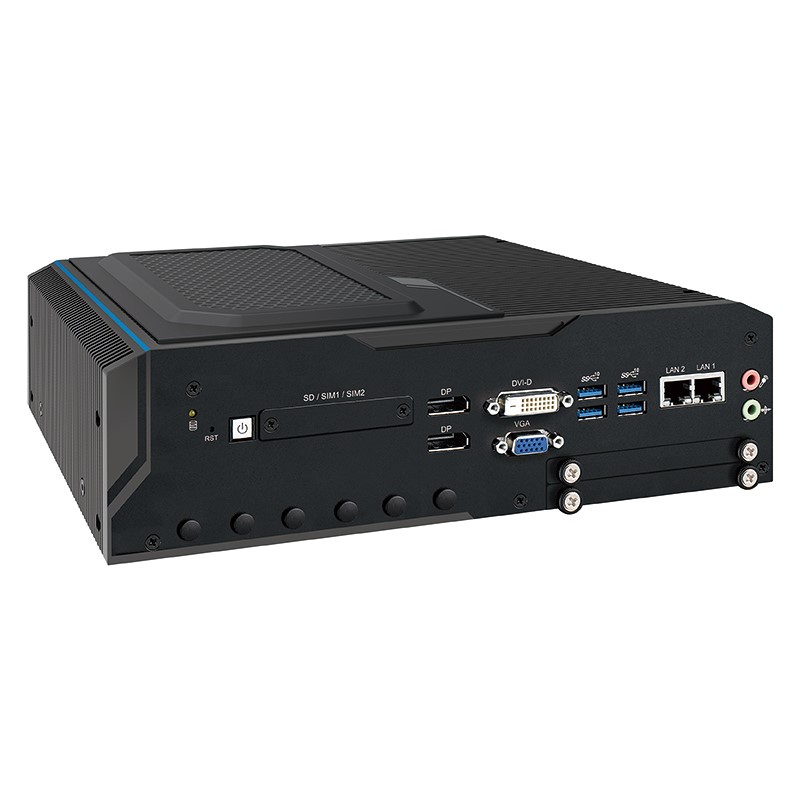

Workstation-grade 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor, compact NVIDIA® or AMD MXM graphics engine, supports NVIDIA® CUDA cores, up to 8 display interfaces, all-in-one integrated features, multiple I/O connection, 2 SIM sockets for remarkable mobile availability, PCI/PCIe slot, 6 USB 3.2, Isolated DIO, smart manageability, 9V to 50V power input with 80V surge protection, ignition control. The EVS-2000 Series Fanless AI Computing System makes versatile function possible for Facial Recognition, Factory Automation, Smart Retail, Machine Vision and any AI oriented embedded applications.
The MVC-31 machine vision computer is compact, configurable and offers highly cost-effective performance. Featuring Intel Core i processors with expansion options to support a variety of third party GPUs and FPGA boards, the MVC-31 is ideal for machine vision applications demanding robustness within controlled environments.

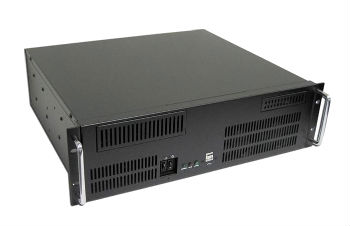

Robust, highly configurable and specified with extreme 8 core i7 processing power, this computer is the most expandable in our machine vision range. The rackmountable MVC-431 packs in as much as I/O and expandability into a 3U form factor as is possible, making it ideal for applications requiring high performance in a compact footprint.
These highly expandable dual GPU workstations allow integrators to combine machine vision applications with AI. Powered by 6 core 8th generation Intel processors and leading-edge RTX 2080 Nvidia Turing architecture, the workstation range delivers high processing performance for demanding real-time applications.
These compact, fanless embedded computers are specified with a wide operating temperature range and offer extreme performance through Intel’s latest generation Core i and Xeon processors. Full-height PCI/PCIe x16 expansion, multiple USB 3.1 and flexible I/O features make these models ideal for image-intensive vision applications.
