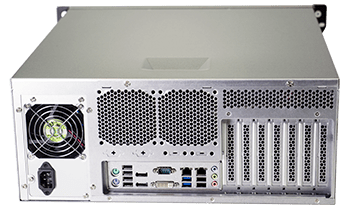

The4U IC-445-B is our most cost-effective off-the-shelf 4U platform. Featuring the highest airflow design of our IC range and combining I/O with strong security features and increased internal storage, the platform is ideally suited to a range of applications from general computing to data processing and simulation.
Industry-leading performance with Intel® Core i technology. The IC-445-B features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The IC-445-B offers a host of industry-leading technologies, designed to enhance performance, increase security and lower your total cost of ownership.
The IC-445-B chassis is designed for flexibility, and can be rack or desk mounted with the optional pedestal kit. This is ideal for applications with varied install locations, or where installation and configuration happens on a workbench.
Designed to survive in dusty environments. The IC-445-B features a washable filter to prevent dust build-up impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the IC-445-S.
Designed with multiple different applications in mind, the IC-445-S offers multiple component configuration options along with support for both full-height and low-profile expansion cards.
The IC-445-S features extended longevity by incorporating industrial-grade components on a stable platform road map. This, coupled with Captec’s change control and BoM management processes, ensures critical components are managed to increase support for software and compliance requirements.

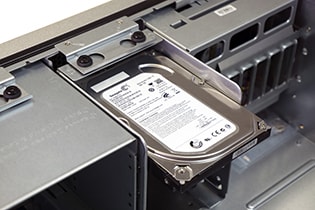

The IC-445-B is specified with isolated drive cages, protecting internal components from damage caused by mechanical disk vibration.
The IC-445-B chassis features a programmable intrusion switch (with G and S motherboard options). The switch safeguards the system from undetected interference.
The IC-445-B features a high-performance power supply, compliant with the 80 PLUS Ecos standard and designed to be at least 80% efficient.
| CPU | Intel Celeron G3900, Intel Core i3-6100, Intel Core i5-6500, Intel Core i7-6700, Intel Celeron G3930, Intel Core i3-7101E, Intel Core i5-7500, Intel Core i7-7700 |
| Chipset | Q170/H110/B150 (varies with motherboard) |
| Memory | 2 x DDR4 2400MHz (2133MHz with 6th Gen CPU) UDIMM (up to 32GB) |
| Disks | x 5.25” external bay, 1 x 3.5” external drive bay, 4 x 3.5” internal drive bays, Slim DVD drive bay |
| Operating System | Microsoft Windows 7 / Windows 8 / Windows 10 / Windows Server 20xx / Linux (configuration support optional) |
| Power Supply | 400W 80+ gold (redundant option available) – AC 90~264V |
| Dimensions | 430mm (W) x 176mm (H) x 445mm (D) |
| Expansion Slots | Up to 7 Full Height |
| Operating Temperature | 0°C to 40°C / 0°C to 60°C (varies on motherboard) |
| Ingress Protection | Washable inlet air filter |
