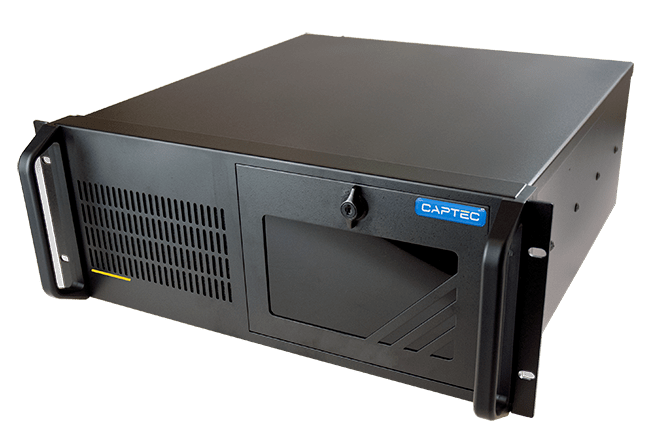

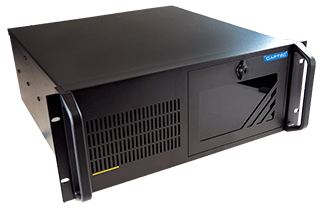

The new IC-445-G series from Captec is our most robust off-the-shelf 4U platform. Designed for demanding and challenging industrial environments, it features easily serviceable fans and filters to keep the system fully operational 24/7. The series offers our highest level of BOM control in a 4U form factor, making it an ideal solution for industries such as energy where platform consistency and increased I/O capabilities are essential.
Industry-leading performance with Intel® Core i technology. The IC-445-G features options for a range of processors with onboard graphics, ensuring the right performance level is specified for your application while retaining cost-effectiveness.
The IC-445-G offers a host of industry leading technologies, designed to enhance performance, increase security and greatly improve the cost of ownership of your IT systems.
The IC-445-G features a robust chassis designed to increase product lifespan when deployed in demanding and challenging industrial environments.

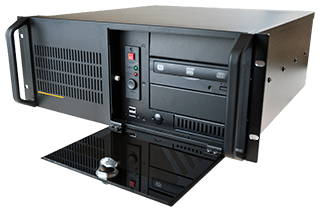

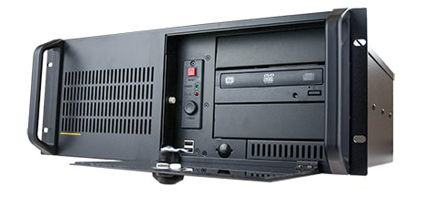

The IC-445-G chassis features a lockable front door to protect switches and drive bays from unauthorised access, ensuring tamper free operation in the field.
Designed to survive in dusty environments. The IC-445-G features a washable filter to prevent dust buildup impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the IC-445-G.
Designed for compatibility with multiple applications, the IC-445-G offers a range of component configuration options along with support for both full-height and low-profile expansion cards.
The IC-445-G features extended longevity by incorporating industrial-grade components on a stable platform road map. This, coupled with Captec’s change control and BoM management processes, ensures critical components are managed to increase support for software and compliance requirements.
Customise your design with chassis and component changes. The IC-445-G design can be modified from MOQs as low as 10, without engineering charges for alterations including custom branding and further ruggedisation.
The IC-445-G features a high-performance power supply, compliant with the 80 PLUS ECos standard and designed to be at least 80% efficient.
| CPU | Intel Celeron G3900, Intel Core i3-6100, Intel Core i5-6500, Intel Core i7-6700, Intel Celeron G3930, Intel Core i3-7101E, Intel Core i5-7500, Intel Core i7-7700 |
| Chipset | Q170/H110/B150 (varies with motherboard) |
| Memory | 4 x DDR4 2400MHz (2133MHz with 6th Gen CPU) UDIMM (up to 64GB) |
| Disks | 3 x 5.25” external bay, 1 x 3.5” external drive bay |
| Operating System | Microsoft Windows 7 / Windows 8 / Windows 10 / Windows Server 20xx / Linux (configuration support optional) |
| Power Supply | 400W 80+ gold (redundant option) – AC 90~264V |
| Dimensions | 427 x 177 x 451 (mm) |

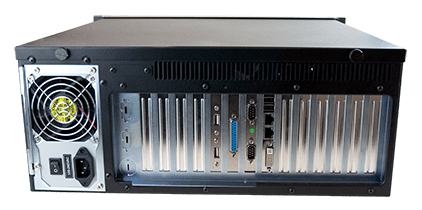

| Expansion Slots | Up to 7 full height (varies with motherboard) |
| Operating Temperature | 0°C to 60°C |
| Ingress | Fine particle washable fan filter |
