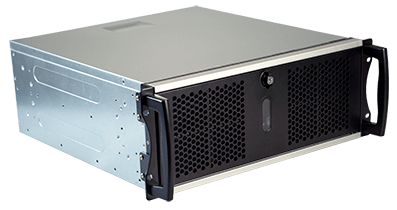

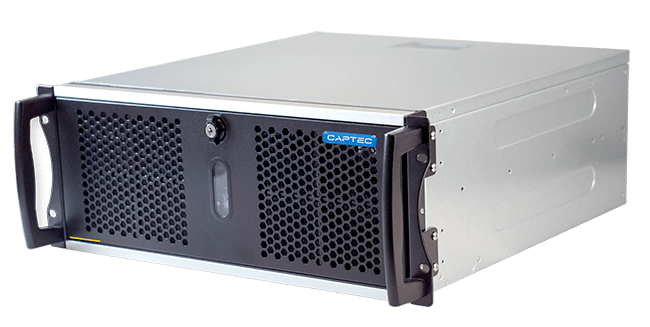

The new IC-445-S series from Captec is our most expandable off-the-shelf 4U platform. Supporting a combination of enriched I/O capabilities, a host of chassis security features and large internal capacity for storage drives, the IC-445-S series is ideally positioned to perform research and data-centric applications where secure storage and I/O are key.
Industry-leading performance with Intel® Core i technology. The IC-445-S features options for a range of processors with onboard graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The 4U IC-445-S Industrial Computer offers a host of industry leading technologies, designed to enhance performance, increase security and greatly improve the cost of ownership of your IT systems.
The IC-445-S chassis is designed for flexibility, and can be rack or desk mounted with the optional pedestal kit. This is ideal for applications with varied install locations, or where installation and configuration happens on a workbench.

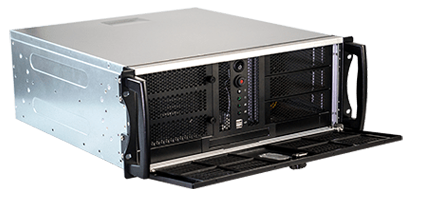

The IC-445-S chassis features a lockable front door, protecting switches and drive bays from unauthorised access to ensure tamper-proof operation in the field.
Designed to survive in dusty environments. The IC-445-S features a washable filter to prevent dust buildup impacting internal component performance. This increases reliability and extends component life by ensuring effective heat dissipation is achieved and maintained.
High reliability, industrial-grade components designed for 24/7 operation combined with a robust construction optimises the service life of the IC-445-S
Designed with multiple different applications in mind, the IC-445-S offers multiple component configuration options along with support for both full-height and low-profile expansion cards.
The IC-445-S features extended longevity by incorporating industrial-grade components on a stable platform roadmap. This, coupled with Captec’s change control and BoM management processes, ensures critical components are managed to increase support for software and compliance requirements.
The IC-445-S chassis features a programmable intrusion switch (with G and S motherboard options). The switch safeguards the system from undetected interference.
The IC-445-S is specified with isolated drive cages, protecting internal components from damage caused by mechanical disk vibration.
The IC-445-S features a high-performance power supply, compliant with the 80 PLUS ECos standard and designed to be at least 80% efficient.
| CPU | Intel Celeron G3900, Intel Core i3-6100, Intel Core i5-6500, Intel Core i7-6700, Intel Celeron G3930, Intel Core i3-7101E, Intel Core i5-7500, Intel Core i7-7700 |
| Chipset | Q170/H110/B150 (varies with motherboard) |
| Memory | 2 x DDR4 2400MHz (2133MHz with 6th Gen CPU) UDIMM (up to 32GB) |
| Disks | 3 x 5.25” external bay, 1 x 3.5” external drive bay, 4 x 3.5” internal drive bays, Slim DVD drive bay |
| Operating System | Microsoft Windows 7 / Windows 8 / Windows 10 / Windows Server 20xx / Linux (configuration support optional) |
| Power Supply | 400W 80+ gold (redundant option) – AC 90~264V |
| Dimensions | 445 x 430 x 176 (mm) |

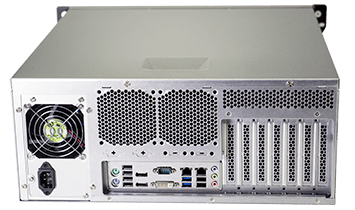

| Expansion Slots | Up to 7 full height (varies with motherboard) |
| Operating Temperature | 0°C to 60°C |
| Ingress Protection | Removable fan filter |
