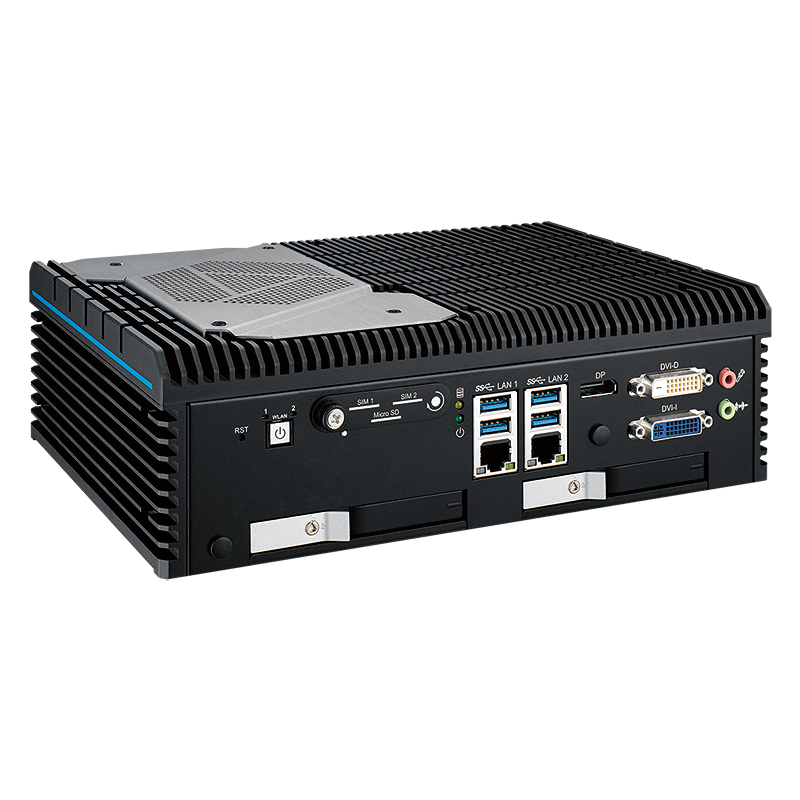

Powered by 10th generation 10-core Intel® Xeon®/Core™ i9/i7/i5/i3 processor (Comet Lake), running with Intel® W480E Chipset, fanless -40°C to 75°C operating temperature, multiple 2.5GigE/10GigE RJ45/SFP+ Fiber LAN, max 6 USB 3.2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, 9V to 50V power input with 80V surge protection, ignition power control, smart circuit protection and rugged reliability in harsh environments, all-in-one integrated features, the ECX-2000 Series Fanless Embedded System is your new generation choices for Factory Automation, Intelligent Vending, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, any Artificial Intelligent oriented AIoT or Industry 4.0 applications.
The ECX-2000 provides industry leading performance with the latest 10-core Intel Core i9/i7/i5/i3 processor running with Intel PCH (CML-S), max 95W CPU supported. The ECX-2000 has many improvements including max 20% CPU performance enhancement and 10% graphics performance improvement over the former 9th Generation Intel Coffee Lake (CFL-S R) processors.
The ECX-2000 offers a user-friendly chassis design that supports easier system maintenance along with a remote power switch. It comes equip with a considerate tool-less SIM/SD socket cover and front-access & lockable SSD trays, RAID 0, 1 supported. Also included with the ECX-2000 is TPM 2.0, iAMT 14.0, vPro, PXE, Wake on LAN, Watchdog Timer.
DisplayPort, DVI-D and DVI-I triple independent display, up to 4K resolution are all supported by the ECX-2000. Also supported is max 9 GigE LAN with 4 IEEE 802.3at PoE+ (25.5W/48V) and max 6 10G USB 3.2 Gen 2, 4 COM RS-232/422/485, 2 SIM Socket, Isolated DIO, and M,2 Key B, M.2 Key E, M.2 Key M.
The ECX-2000 supports USB 3.2 Gen 2 (10G), 10GigE LAN (10G), 10G SFP+ (10G), PCIe 3.0 (8GT/s), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G).
| CPU | 10th Gen Intel®Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S) |
| Memory/Storage | 2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC) |
| Storage | 1 Micro SD Card, Push-in/Push-out Ejector |
| Graphics | Intel® UHD Graphics 630 |
| Expansion | Mini PCle M.2 SUMIT A, B |
| LAN | LAN 1: Intel® I219LM GigE LAN supports iAMT 14.0 |
| I/O | 4 x COM RS-232/422/485 (ESD 8kV) |
| Video/Audio | DVI-I : Up to 1920 x 1080 @60Hz Realtek ALC892, 5.1 Channel HD Audio |
| Operating system | Windows 10 |
| Input voltage | 9 – 50V DC input |
| Dimensions | 260mm (W) x 175mm (L) x 79mm (H) |
| Operating temperature | 35W TDP CPU : -40°C to 75°C (-40°F to 167°F), Fanless 65W TDP CPU : -40°C to 55°C (-40°F to 131°F), Fanless 80W and 95W TDP CPU : -40°C to 55°C (-40°F to 131°F), with Fan Sink 2.5G Series : -40°C to 70°C (-40°F to 158°F), Fanless 10G Series : -40°C to 55°C (-40°F to 131°F), with Fan |
