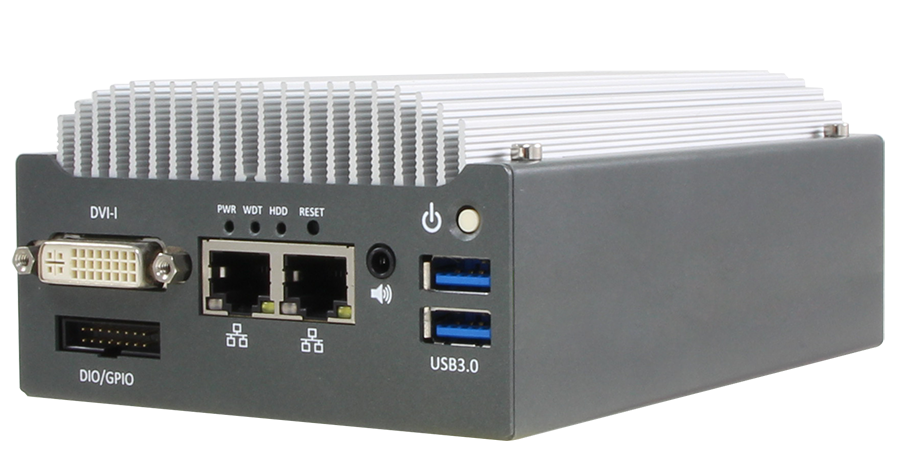

Reliable and versatile fanless ultra compact embedded computers combining high processing power with low power consumption. A rugged construction with multiple I/O connectivity including PoE and USB 3.0 for cameras, together with wide voltage input, makes this platform ideal for applications such as vision systems, automation, kiosks, access control or remote monitoring.
The low power Intel® Atom™ processor keeps upfront and through life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the EFC-200/01/02/03 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphic applications.
The EFC-200/01/02/03 features a rugged fanless design, combining excellent thermal performance with low weight. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high-reliability.
The EFC-200/01/02/03 is designed for flexibility in connectivity to suit a range of applications. Options including additional serial ports, 8 digital I/O with isolation, and a mini PCIe slot for further expansion, ensure compatibility with any performance requirement.
The 8-35V DC input power provisions for fluctuating power sources, enabling compatibility with a broader variety of applications and larger equipment installations.
Designed and manufactured with no moving parts, the EFC-200/01/02/03 can be installed in applications where shock and vibration are prominent, without compromising performance or reliability.
The EFC-200/01/02/03 has an operating temperature range of -25°C to 70°C, ensuring reliable operation in extreme temperatures and environments.
| CPU | Intel® Atom E3845, 1.9Ghz; Intel® Atom E3825, 1.33Ghz |

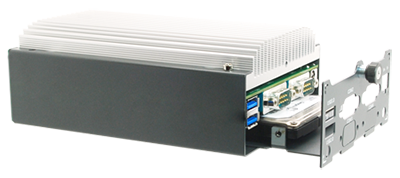

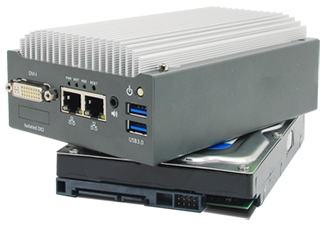

| Memory / Storage | 2GB DDR3, expandable to 8GB (max 4GB on EFC-203) / 1 x 2.5” SATA SSD; easy swap tray on EFC-202, EFC-203 |
| Graphics | Intel® HD graphics |
| Expansion | 1 x Mini PCIe slot; 1 x USIM socket |

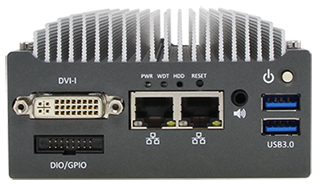

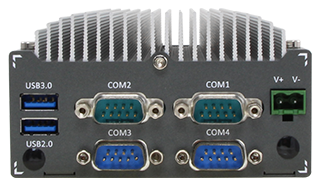

| LAN / I/O | 2 x Gigabit LAN ports, with PoE on EFC-200 / 2 x RS232/422/485 on EFC-200/201 2 x RS232 on EFC-200/201 1 x RS232/422/485 on EFC-202/203 1 x RS232 on EFC-202/203 3 x USB 3.0; 1 x USB 2.0; 4 x isolated DI; 4 x isolated DO on EFC-200 8 x GPIO on EFC-201/202/203 |
| Optional I/O | 4 x isolated DI, 4 x isolated DO on EFC-201/202/203 in lieu of 8 x GPIO |
| Video / Audio | 1 x DVI-I / 1 x line out |
| Operating System | Win 7/8, Linux |
| Input Voltage | 8-35 VDC |
| Dimensions / Weight | 149mm W x 57mm H x 105mm D / 1kg |
| Operating / Storage Temperature | -25°C to 70°C (SSD) / -40°C to 85°C |
| Shock / Vibration | 50g, 11ms / 5g, 5-500Hz |
| Certification | CE; FCC class A |
| Ordering Information | EFC-200: E3845, Quad Core, PoE, 4 x COM EFC-201: E3845, Quad Core, 4 x COM EFC-202: E3845, Quad Core, 2 x COM EFC-203: E3825, Dual Core, 2 x COM |
