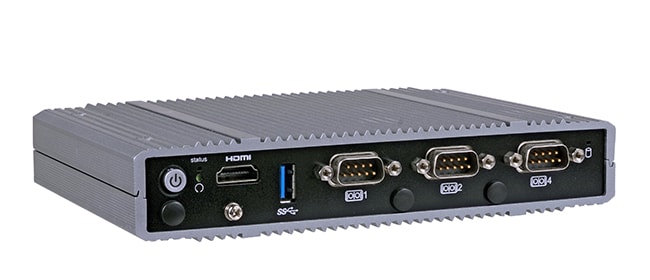

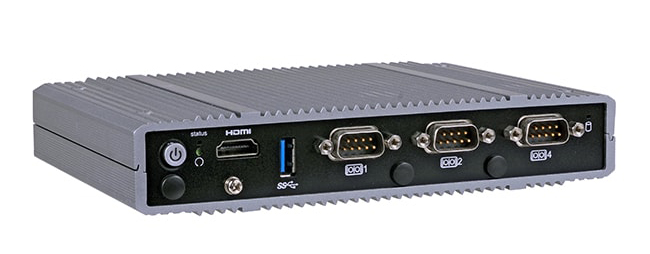

Compact, reliable and versatile small fanless embedded computer providing high processing power with low power Consumption. A rugged construction combined with multiple I/O connections and wide voltage input makes this platform ideal for applications including machine automation, kiosks, access control and remote monitoring.
The EFC-210/211 has a compact of footprint of 180mm x 121mm, meaning it can be easily installed in applications where space is restricted.
The low power Intel® Atom™ processor keeps upfront and through life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the EFC-210 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphic applications.
Multiple serial and digital I/O capabilities alongside WiFi support, a SIM card socket and mini-PCIe expansion options ensures the EFC-210/211 will meet your exact requirements.
Designed and manufactured with no moving parts, the EFC-210 can be installed in applications where shock and vibration are prominent, without compromising performance or reliability.
The chassis is compatible with VESA, desktop and wall-mounting, ensuring the EFC-210/211 can be integrated into your desired environment with minimal time and effort.
The EFC-210/211 features a rugged fanless design, combining excellent thermal performance with low weight. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high-reliability.
| CPU | Intel© Atom E3825 Dual Core, 1.33GHz – EFC-210; Intel© Atom E3845 Quad Core, 1.9GHz – EFC-211 |
| Memory / Storage | 2GB DDR3, expandable to 4GB 1 x SATA 32GB SSD, expandable to 128GB (HDD optional); optional 1 x mSATA SSD up to 64GB; optional eMMC onboard (4GB/8GB/16GB) |
| Graphics | Intel© HD graphics |
| Expansion | 3 x mini-PCIe slots; 1 x SIM socket; optional microSD socket |

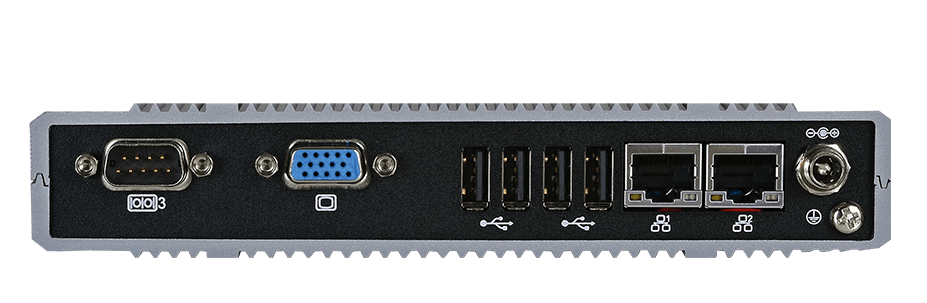

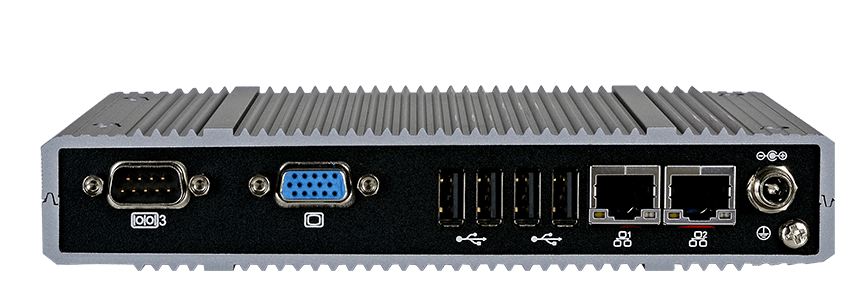

| LAN / I/O | 2 x Gigabit LAN Ports Optional WiFi / 4 x RS232/422/485; 1 x USB 3.0; 4 x USB 2.0 |
| Optional I/O | Optional 8-bit DIO in lieu of 1 serial port |

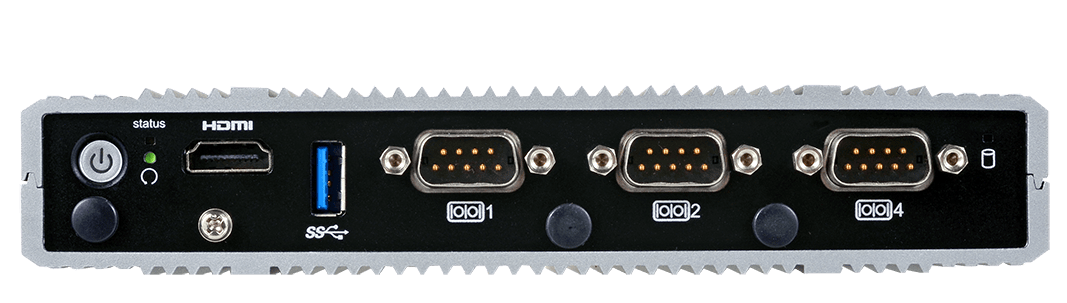

| Video | 1 x HDMI; 1 x VGA or optional DVI-I |
| Operating System | Win 7/8 |
| Input Voltage | 9-36 VDC; optional AC power adapter |
| Dimensions | 180mm (W) x 33mm (H) x 121mm (D) |
| Operating / Storage Temperature | 0°C to 60°C / -20°C to 85°C |
| Shock / Vibration | 15g, 11ms (SSD) / IEC68-2-64 (3G) |
| Ordering Information | EFC-210: E3825 Dual Core; EFC-211: E3845 Quad Core |
