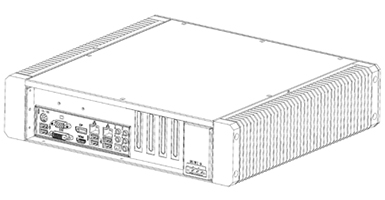

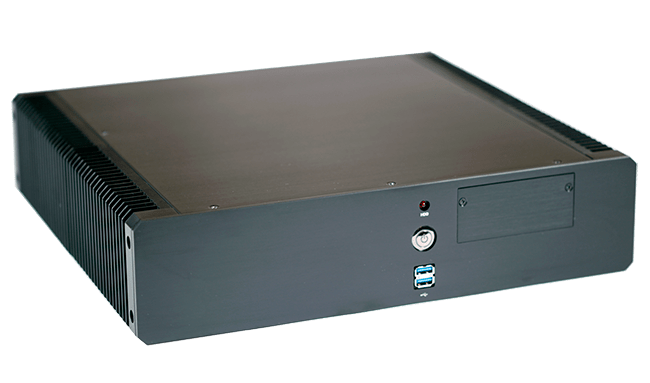

Versatile, powerful and fanless computer designed to marine standard IEC60945 for critical ship systems. The MCS-424 is ideal for navigation systems including bridge consoles, positioning systems, ECDIS, ARPA, and propulsion control. It is also perfect for machinery control and monitoring, alarms, and fire and emergency systems. Versatility is enhanced by a range of approved I/O and graphics cards which also maintain certification.
The MCS-424 is certified to marine standards DNV 2.4, IACS E10 and IEC60945, ensuring it can be specified for a variety of shipborne applications with confidence.
The MCS-424 features a rugged fanless design, combining excellent thermal performance with low weight. The platform operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high-reliability.
Industry-leading performance with Intel® Core i technology. The MCS-424 features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.

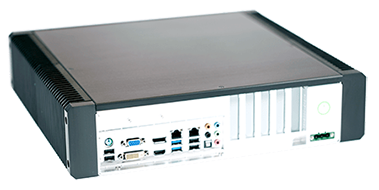

The MCS-424 comes with marine-certified expansion and configuration options. Three half-height full length expansions slots with approved graphics and I/O cards, including serial and NMEA, provide high performance capabilities.
The MCS-424 has an operating temperature range of -15°C to 55°C, providing extended operational life in applications with challenging temperature demands.
| CPU | Intel© 4th Generation i3-4330TE (2.4GHz), i5-4590T (2.3GHz), i7-4770TE (2.3GHz) |
| Chipset | Q87 |
| Memory | Up to 32GB DDR3 |
| Storage | SSD / HDD (optional hot-swap bay) |
| Graphics | Integrated in processor, supports 3 independent displays (optional dual/quad graphics cards available) |
| Expansion | 3 x half-height full length expansions slots: 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 1x mini-PCIe slot |
| LAN | 2 x gigabit LAN ports (optional single/Dual Ethernet Cards) |
| I/O | 4 x USB 3.0, 4 x USB 2.0 |
| Optional I/O | 3 x RS232 1 x RS232/422/485 4 x isolated RS-232/422/485/NMEA Card 8 x isolated RS-232/422/485/NMEA Card |
| Audio | Onboard 7W audio amplifier kit |
| Operating System | Windows 7/8/10, Linux |
| PSU | Isolated 24VDC Optional AC Adapter |
| Input Voltage | 9-36VDC |
| Dimensions | 380mm (W), 88mm (H), 350mm (D) |
| Weight | 7.5kg |
| Construction | Aluminium alloy chassis with heat pipe cooling |
| Operating Temperature | -15oC to 55°C |
| Storage Temperature | -20oC to 70°C |
| Certification | IEC60945, DNV 2.4, IACS E10, CE |
| Optional Accessories | Dual VGA/DVI graphics card Quad VGA/DVI graphics card 4 x isolated RS232/422/485/NMEA card 8 x isolated RS232/422/485/NMEA card Single Ethernet card Dual Ethernet card 7W audio amplifier Kit 19-inch rackmounting kit Dual 2.5-inch SATA hot swap drawer, RAID supported |
