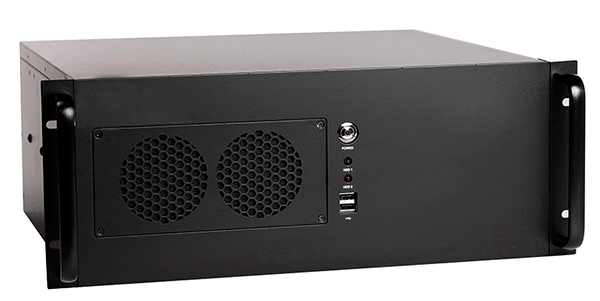

The MCS-44 server is certified to marine standards IEC 60945, DNV 2.4 and IACS E10. The server is ideally suited to critical ships systems including navigation, ECDIS, positioning systems, and propulsion control. Powered by Intel® Xeon or Core i7 Extreme processors, it offers high computational power in a robust, short depth 4U chassis with multiple expansion and storage capabilities.
The MCS-44 is certified to marine standards DNV 2.4, IACS E10 and IEC60945, ensuring it can be specified for a variety of shipborne applications with confidence.
Industry-leading performance with Intel® Xeon architecture. The MCS-44 features options for a range of processors, delivering unrivalled performance levels for a range of computationally intensive applications. These options also allow for ECC-memory installation, ensuring total data integrity for mission-critical applications.
The MCS-44 has an operating range of -15°C to 55°C, providing extended operational life in applications with challenging temperature demands.
The MCS-44 comes with marine-certified expansion and configuration options. Five full-height expansion slots with approved graphics and I/O cards, including serial and NMEA, provide high performance capabilities.
The chassis is compatible with installation in reduced depth racks or cabinets, ideal for applications where space is at a premium. The design allows you to minimise the size and cost of the complete solution.
| CPU | Intel® Xeon E5-2680v4 or Core i7-5820K Extreme / Performance |
| Chipset | C612 |
| Memory | Up to 512GB DDR4 ECC RDIMM or 128GB DDR4 non-ECC UDIMM |
| Storage | SSD / HDD with optional hot swap |
| Graphics | On-board graphics processor, optional approved graphics cards |
| Expansion | 5 slots: 4 x PCIe x16 3.0, 2 x PCIe x1 2.0 |
| LAN | 2 x Gigabit LAN ports, optional interface cards, optional 10GbE fibre |
| Rear I/O | 6 x USB 3.0, HD audio ports, PS/2 mouse/ keyboard port |
| Internal I/O | 10 x SATA3, 2 x USB 3.0, 1 x TPM, 1 x RS232 optional 4 or 8 port isolated RS232/422/485 cards |
| Video | 1 x VGA, optional approved graphics cards |
| Operating System | Windows 7/8/10, Windows Server 2012, Linux |
| Input Voltage | 110-240 VAC, 50/60Hz, isolated |
| Dimensions | 483mm (W) x 177mm (H) x 385mm (D) |
| Construction | Steel chassis |
| Operating Temperature | -15°C to 55°C |
| Certification | IEC60945 IACS E10 DNV 2.4 CE |
