The Captec SES range is a family of highly secure servers that have been developed in close collaboration and partnership with Viasat. The SES-120 incorporates Viasat’s DARC-ssd® 600 drives, an NCSC CAPS-evaluated technology, to safeguard official, secret, and top-secret information in enterprise and tactical environments, such as data stored in vehicles, aircraft, and ships.
Featuring military-grade AES-256 hardware encryption and a tamper-evident design, the SES-120 is engineered with custom forced-air cooling, to minimize throttling during heavy workloads. It is available in compact 2U and 1U form factors with up to four 1Tb NVMe™ SSD drives, which can be unlocked in a single drive set.
The SES range is available with optional ruggedization up to MIL standard if required, to support deployment in demanding environments. We also offer a wide range of communications and I/O connectivity and configurable options for processing power, storage, and power supply, as well as pre-loaded OS.
At Captec, we specialize in supporting our customers to design and deliver solutions tailored to meet their specific requirements. Our expert team is ready and able to support you in designing a secure encrypted server to match your needs and overcome your challenges.
Contact us today to start your SES-120 journey.

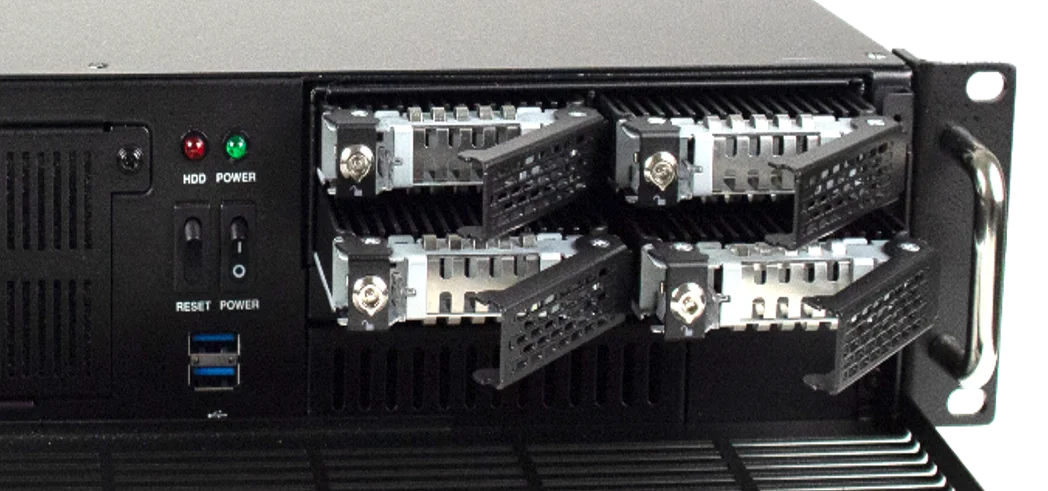

Each SES-120 server features 4 x Viasat DARC-ssd ® 600 NVMe™ AES-256 hardware encrypted solid state drives.
The SES-120 features a range of 13th generation Intel CPUs, with a choice of i9, i7 and i5 units.

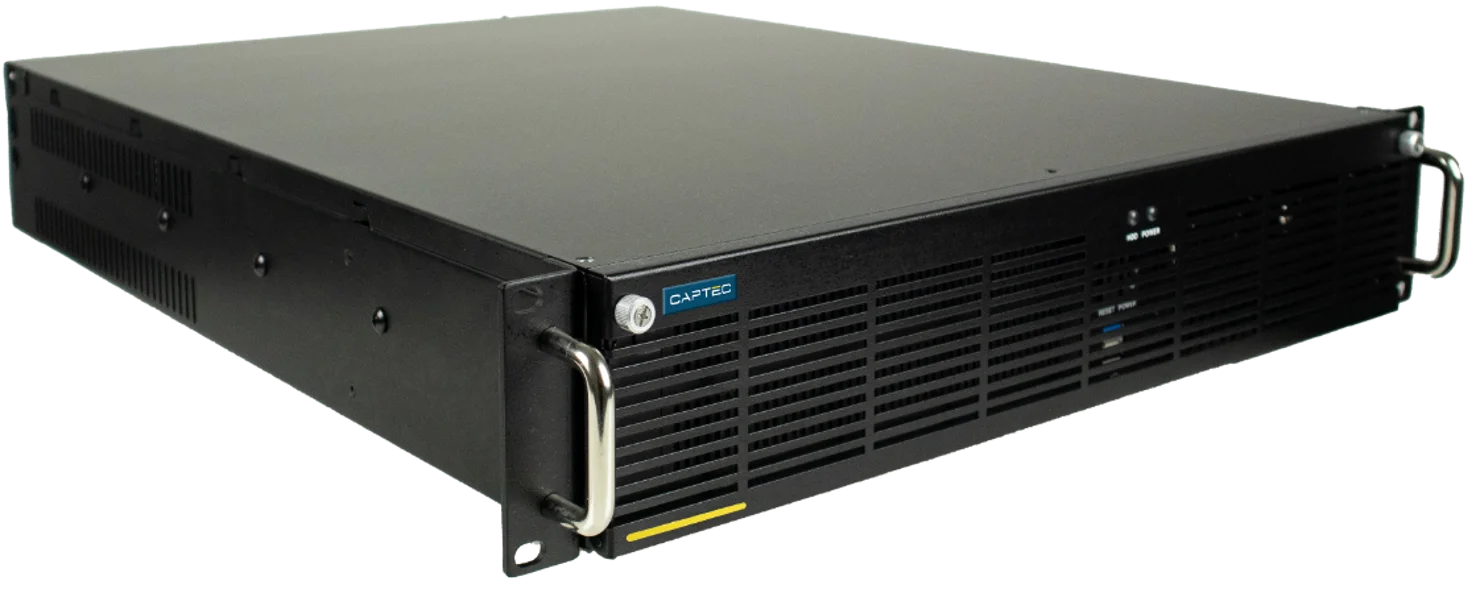

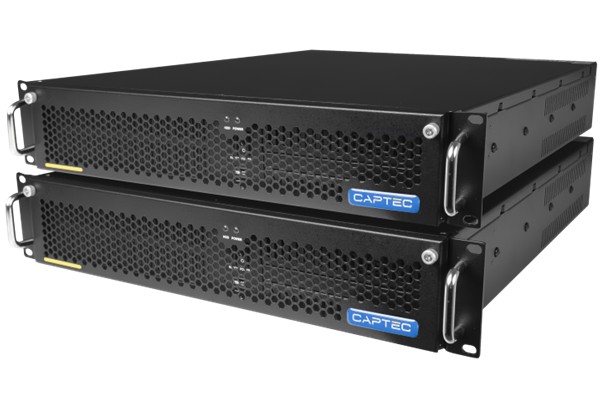

SES-120 servers are available in 2U or 1U rackmount form factors, robustly constructed with configurable payloads.
SES-120 servers provide a wide range of expansion options for high bandwidth fibre and GPU processing.
Ruggedized variants of the SES-120 are available up to MIL-STD, supporting the harshest operating environments.
| CPU | Commercial: Embedded: *Clock Speed based on Performance Cores |
| Chipset | Intel® Z690 |
| Memory | Up to 128GB DDR4, non-ECC RAM |
| Storage | Viasat DARC-ssd® 600 (AES-256 Encryption) |
| Disks | 1 to 4 x M.2 (2280) NVMe |
| Graphics | Onboard Intel® UHD Graphics 770. Additional discrete graphics card options are available. |
| Front I/O | 2 x USB 3.0 Type A ports (for use with Viasat Keystone Token) |
| Rear I/O | 2 x 10Gb LAN, Intel® X710 |
| Expansion | 3 Slots: 1 x PCIe4.0 x 16, 1 x PCIe4.0 x 8, 1 x PCIe3.0 x 1 |
| Optional I/O | Fibre LAN up to 100Gb |
| Operating System | Microsoft® Windows: Linux: Hypervisor: *Please contact our sales teams to discuss your project requirements |
| DVD | Custom build option on request |
| Dimensions | 483W x 88H x 510D (mm) |

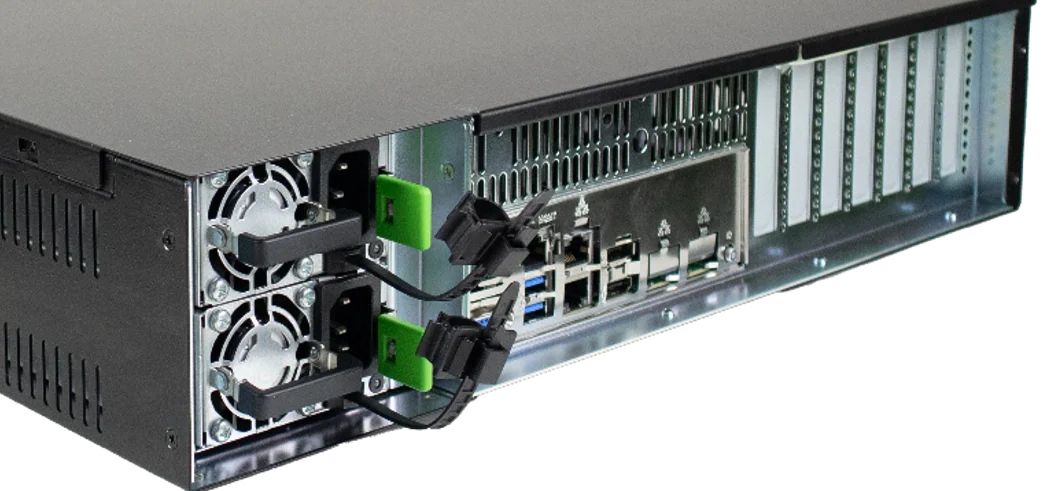

| PSU | High reliability single, or dual redundant power supplies: |
| Form Factor | 2U, 19” Rackmount Design (1U Variant available) |
| Weight | Approx. 12.5Kg, depending on configuration |
| Construction | Heavy duty cold rolled electroplated steel |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -40°C ~ +70°C |
| Certification | CE, RoHS, REACH |
