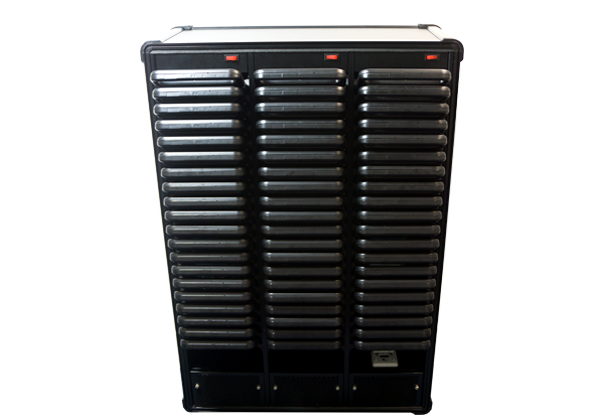

The TCS-360 tablet charging station has been designed and developed specifically to meet the needs of applications where large populations of tablet computers are used and charged simultaneously. Having a single point of cable-less charging completely eliminates the clutter and complication caused by additional leads and adapters. Space available for charging tablets is typically minimal. The TCS charging station creates a compact footprint, requiring far less space to power bigger estates of tablets.
Designed for locations where large populations are used on a single site, the charge station provides compact and hassle-free charging for 60 tablets.

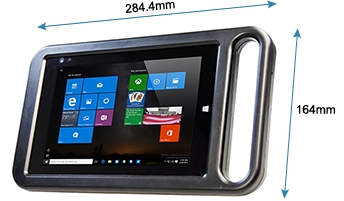

The cable-free architecture makes putting the X230 onto charge less complex, facilitating the possibility of self-service installations and reducing the time spent by staff issuing and recharging tablets.
Cable-less docking eliminates downtime and prevents issues associated with cable breakages due to wear and tear.

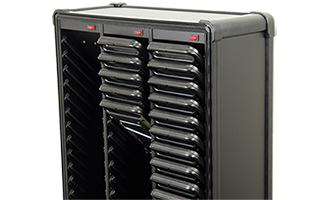

With three vertical stacks of 60 tablets, the charge station minimises the floor-space required to keep devices charged.

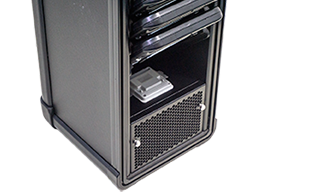

Built-in cooling ensures tablets are reliably and efficiently charged. An optional seven day time switch can be specified to schedule charging, and prevent unnecessary trickle charging.
Optional built in Ethernet connectivity to a compatible charge station provides a wired connection to the tablet, mitigating performance issues related to data transfers over a wireless connection.
| Compatible Tablets | X230 |
| Charging Bays | 60 Bays – 5.4VDC / 3.2A per bay |
| Input Voltage | 110 VAC 60Hz / 240VAC |
| Retention | M6 floor retention bolt, or wall retention strap |
| Dimensions | 670mm W 1029mm H x 302.5mm D |
| Weight | 60kg |
| Operating Temperature | 0-30⁰C |
| Storage | -10⁰C – 50⁰C |
| Certification | CE, FCC (TCS-360, TCS-360-E only) |
| Options | 7 day/ 24 hour time switch 10/100 Ethernet Wired Connectivity to each Bay, with built in 10/100 Switch |
| Ordering Information | TCS-360 – 60 bay Charge Station TCS-360-T – 60 Bay Charge Station with Time switch TCS-360-E – 60 Bay Charge Station with Ethenet TCS-360-TE – 60 Bay Charge Station with Timeswitch and Ethernet |
