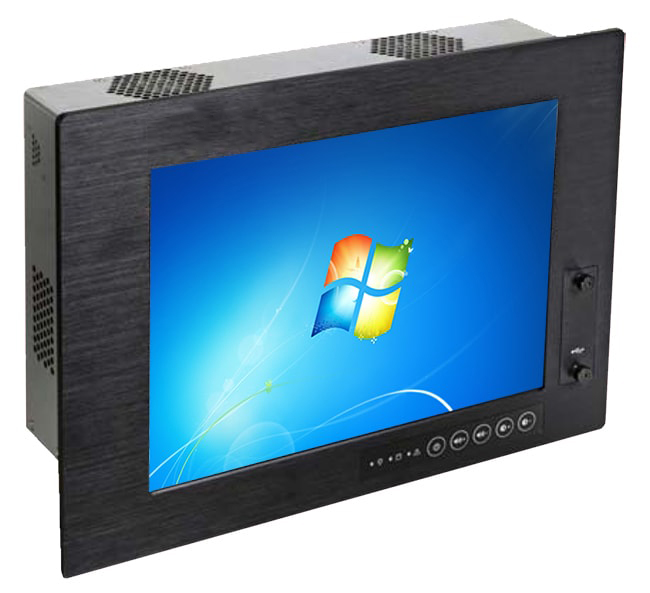

The TPC-121 is a powerful, versatile and configurable touch panel computer. Featuring a dust-tight and water resistant front panel, the platform is ideal for applications where ingress protection is essential. The TPC-121 is pre-certified to IEC 68-2-27, further ensuring reliability in even the most challenging environments. The platform can be configured to your requirements, with options available for expansion, CPU, memory and HDD/SSD.
Industry-leading performance with Intel® Core i technology. The TPC-121 features options for a range of processors with on-board graphics, ensuring the perfect balance between performance and budget is achieved for your application.
The TPC-121 features an IP65 certified front panel, delivering protection from liquid and dust ingress for reliable operation in challenging environments.
The TPC-121 is designed for flexibility to suit a range of applications. A number of I/O options ensure compatibility with any performance requirement.

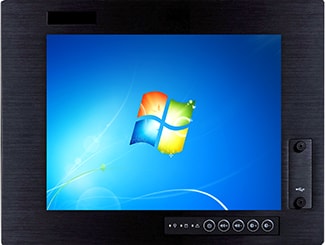

Front USB connectivity on the TPC-121 offers quick and easy connection to the platform, without needing to access the rear of the unit. The configurable function keys offer superior input options, enabling you to programme functionality to meet your specific requirements.
The TPC-121 has an operating temperature range of -10°C to 50°C, providing extended operational life in applications with challenging temperature demands.
| CPU | 3rd generation Intel® CoreTM processors 2nd generation Intel® CoreTM processors supports up to 65W TDP |
| Chipset | Intel® H61 Express |
| Memory | Up to 16GB DDR3 |
| Storage | 1 x 2.5-inch SATA drive bay |
| Screen Size | 12.1-inch 1024×768 TFT LCD panel |
| Touch Screen | Resistive |
| Graphics | Intel® HD graphics |
| DVD | 1 optical drive bay (optional) |
| Expansion | 2 Slots + 2 mPCIe: 1 x PCIe x1 & 1 x PCI OR 2 x PCI |
| LAN | 2 x gigabit LAN ports |

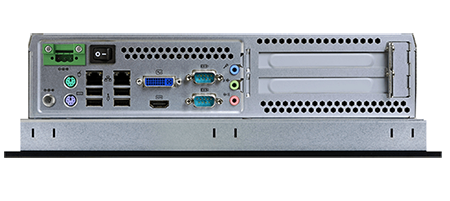

| I/O | 4 x USB 2.0 (rear) 2 x USB 2.0 (front), 1 x RS232 & 1 x RS232/422/485, PS/2 keyboard, PS/2 mouse |
| Video | 1 x DVI-I, 1 x HDMI |
| Audio | 3 way audio (mic-in, line-in, line-out) |
| Operating system | Windows XP,7,8,10, Linux |
| PSU | 120W external power adapter |
| Input voltage | Power input voltage: – Standard: 19~24V DC-in jack – Option: 24V DC-in 3-pole terminal block |
| Dimensions | 265mm (W) x 265mm (H) x 103mm (D) |
| Mounting | VESA mount: 75×75 and 100×100 Wall mount bracket* – optional Panel mount: mounting clamp* – optional |
| Weight | 6.5kg |
| Construction | Aluminium front bezel and metal sheet rear panel |
| Operating Temperature | -10°C – 50oC |
| Storage Temperature | -20°C – 60oC |
| Shock | Operating: 3G peak acceleration (11 msec. duration) Non-operating: 10G peak acceleration (11 msec. duration) |
| Vibration | Operating: 1G, 5~500Hz Non-operating: 1.5G, 5~25Hz |
| Ingress Protection | IP65 front bezel |
| Certification | CE FCC class A RoHS |
