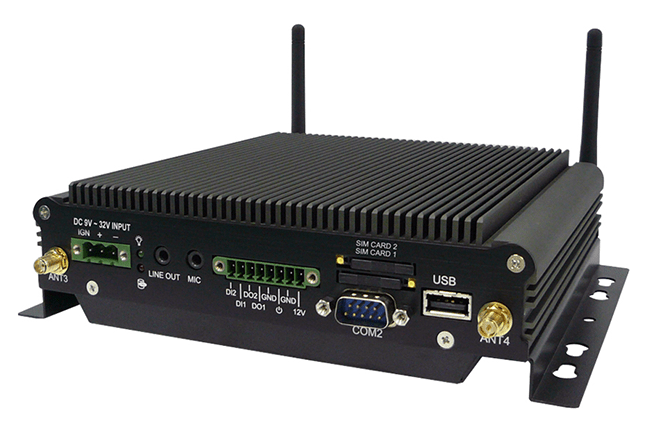

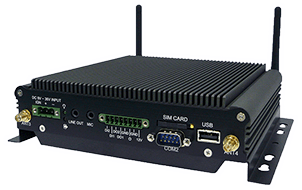

Vehicle Certified Fanless Computer is e-Mark compliant with multiple I/O capabilities and optional battery backup. A rugged construction with a wide temperature range, shock and vibration resistance and small size provides a versatile computer for many vehicle applications.
The VCE-214 complies to the e-Mark safety regulation E13, making it ideally suited for in-vehicle installations.
The low power Intel® Atom™ processor keeps upfront and through-life costs to a minimum. The processor is optimised for energy efficiency, ensuring low thermal output and meaning the VCE-214 can be specified with minimal impact on install location. Integrated Intel® HD graphics equip the platform to deal with demanding graphics applications.
The VCE-214 has an operating temperature range of -40°C to 70°C, providing extended operational life in applications with challenging temperature demands.
The 9-32V DC input power provisions for fluctuating power sources, achieving compatibility with a broader variety of applications and larger equipment installations.
Customisable expansion via multiple SIM and mini-PCIe slots ensures the VCE-214 will meet your exact requirements.
The VCE-214 features a rugged fanless design, combining excellent thermal performance with low weight. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high-reliability.
| CPU | Intel© Atom D2550, Dual Core, 1.86GHz |
| Memory | Up to 4GB DDR3 |
| Storage | 1 x 2.5” SATA SSD/HDD 1 x SATA DOM |
| Graphics | Intel© HD graphics |
| Expansion | 3 x mini-card slots, 2 x SIM card sockets |
| LAN | 2 x gigabit LAN |
| I/O | 1 x RS232, 1 x RS232/422/485, 3 x USB 2.0, 2 x DI, 2 x DO with relay |
| Video / Audio | 1 x DVI-I / 1 x mic in, 1 x line out |
| Operating System | Win XP/7, Linux |
| Input Voltage | 9-32 VDC |
| Dimensions | 182mm (W) x 52mm (H) x 168mm (D) |
| Weight | 1.4kg |
| Operating Temperature | -40°C to 70°C (SSD) |
| Storage Temperature | -40°C to 80°C |
| Shock / Vibration | 40g, 11ms / 2.5g, 5-500Hz |
| Certification | CE, FCC Class A, eMark compliance |
