Highly expandable and robust, these embedded computers are supported by Intel’s latest generation Core i and Xeon processors. Multiple PCIe expansion allows for the integration of high-end graphics and application-specific plugin cards, providing vision integrators with flexibility in configuration. The addition of four removable SSD drives enables higher speed and capacity of data storage with RAID redundancy.
Industry-leading performance with Intel’s 8th generation Xeon and Core i technology. The VEC-891-1400 range features options for high performance (up to 4.6GHz) multi-core processors, designed for demanding vision and imaging applications.

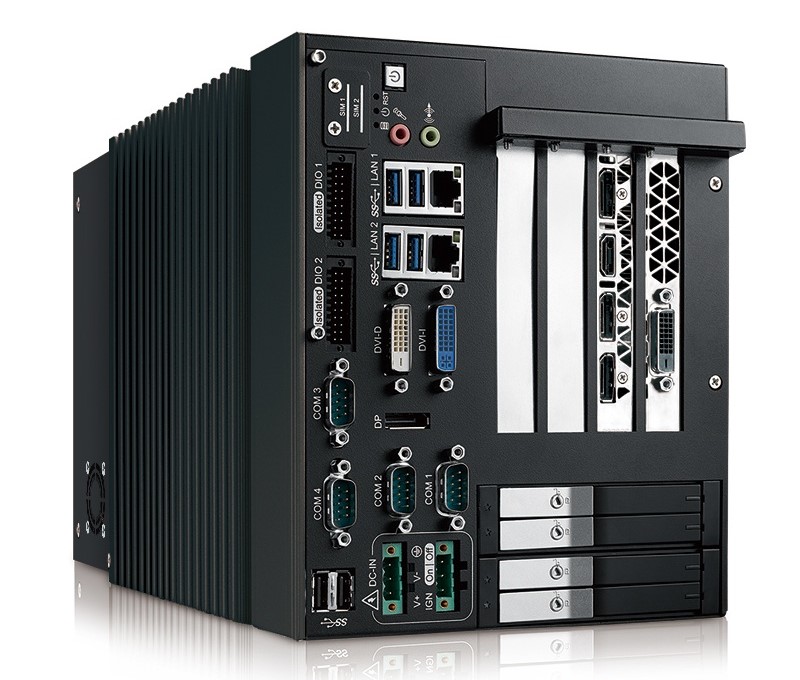

The VEC-891-1400 range features four full-height expansion slots with options for both PCIe and legacy PCI devices. This allows for a wide range of third party application-specific expansion cards including GPUs and FPGA boards, enabling these systems to fit the exact needs of your application.
1 x PCIe X16, 1 x PCIe x4, 1 x PCIe x1, 2 x Mini PCIe, M.2 and optional PCI for legacy expansion cards provide a wealth of expansion and customisation options for application-specific requirements. Captec will install, configure and test the complete platforms, ensuring total functionality before delivery.
With its robust design, the VEC-891-1400 family is protected against high shock and vibration conditions which, coupled with an operating temperature range of -40°C to 75°C, provides extended operational life in a range of challenging environmental conditions. The system operates with no moving parts, ensuring silent operation and improving ease of maintenance to support high reliability.
*Some GPU cards require a small chassis fan to be installed for adequate cooling
2 x GbE LAN, 4 video displays, 6 x USB 3.1 (gen2), 4 x COM, 3 x SIM slots, and 32 GPIO ensures the VEC-891-1400 family is compatible with a wide range of install environments and machine vision applications.
The VEC-891-1400 product family features four hot swap 2.5-inch HDD/SSD bays with support for RAID 0/1/5/10 to enhance system performance and availability.
| CPU | Intel Xeon /Core™ i7/i5/i3 processor (Coffee Lake-S) |
| Memory/Storage | 4 x DDR4 2666MHz RAM, up to 128GB |
| Storage | 4 x removable 2.5” SSD (supports RAID 0/1/5/10) |
| Graphics | Intel HD P630/630 (dependent on CPU) |
| Expansion | MVE-31-1430FR MVE-31-1421FR MVE-31-1412FR 2 x mini-PCIe |
| LAN | 2 x gigabit Ethernet LAN |
| I/O | 6 x USB 3.1 (Gen2) |
| Video/Audio | 1 x DVI-I: up to 1920 x 1200 @ 60Hz Realtek ALC892, channel HD audio |
| Operating system | Windows 10 |
| Input voltage | 6 – 36V DC input |
| Dimensions | 172mm (W) x 330mm (L) x 210mm (H) |
| Operating temperature | 35W TDP CPU : -40°C to 75°C (-40°F to 167°F) |
